The world’s most affordable and flexible professional HD and Ultra HD broadcast camera for live production and studio programs, at the same price of a DSLR camera!
Blackmagic Design has announced Blackmagic URSA Broadcast, a new high end, professional broadcast camera designed for both studio programming and live production.
URSA Broadcast works with existing B4 broadcast HD lenses, can be used for both HD and Ultra HD production, features a 4K sensor, extended video dynamic range, traditional external controls and buttons, built in optical ND filters, dual CFast and dual SD card recorders, and much more.

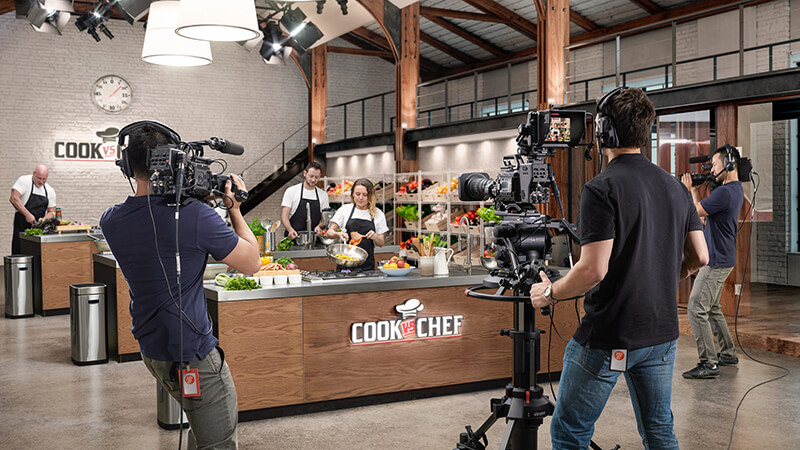

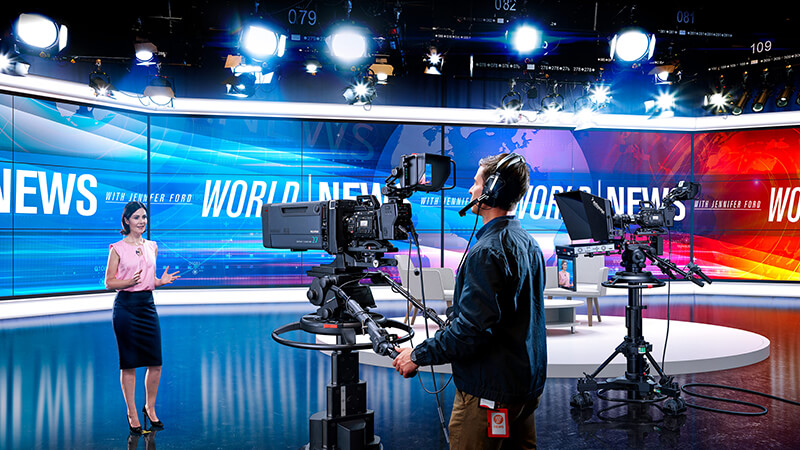

URSA Broadcast is like two cameras in one, an incredible field camera for ENG and programming work, as well as a professional studio camera. The camera features traditional broadcast controls along with exceptional image quality, all in a compact design that is ideal for fast paced, fast turn around production work. The key is URSA Broadcast’s new extended video mode which captures incredible looking video with accurate skin tones and vibrant colors. That means customers don’t have to color correct images before going to air, making URSA Broadcast perfect for news, live sports, studio talk and game shows and more. URSA Broadcast lets customers shoot, edit and get stories on air faster than ever before.
“URSA Broadcast lets customers get the most out of their investment in cameras and lenses because it can be re-purposed and used on every type of project, whether it’s out in the field or in the studio. It’s like getting two cameras in one.” said Grant Petty, CEO, Blackmagic Design. “URSA Broadcast is exciting because it makes high end broadcast camera technology available to everyone from AV and web producers all the way up to professional broadcasters, for the same price as a common DSLR!”

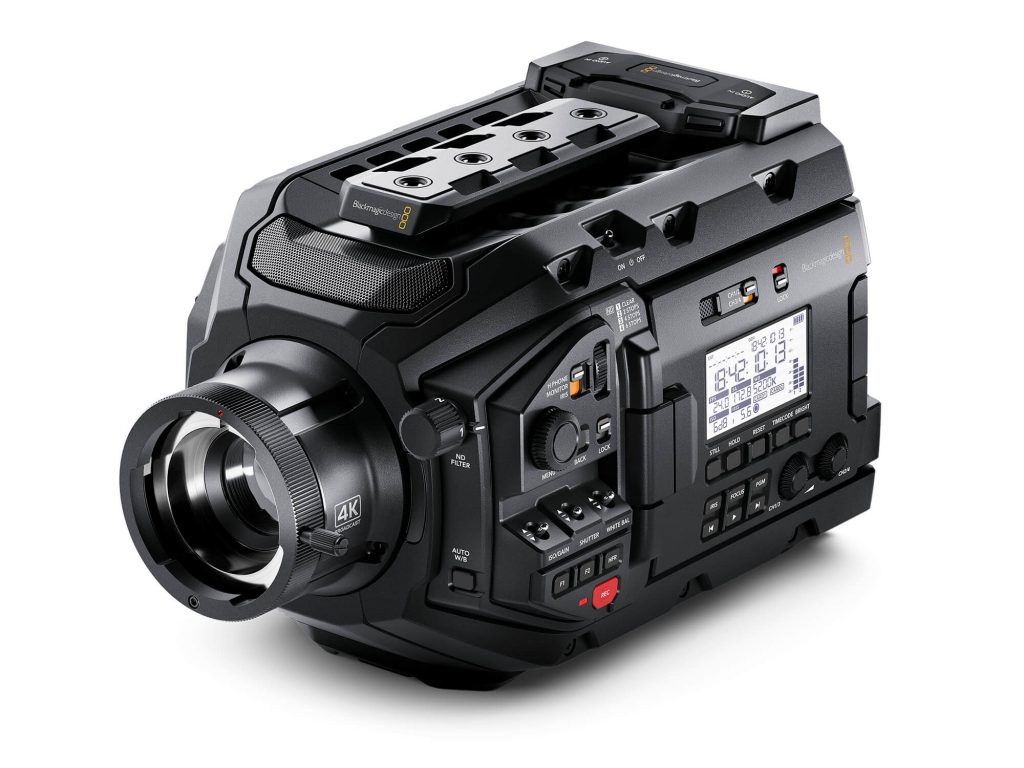

Blackmagic URSA Broadcast
Advanced HD and Ultra HD broadcast camera with B4 mount, broadcast controls, built in ND filters, extended video dynamic range, and ProRes or DNx recording onto SD, UHS-II or CFast cards.
Blackmagic URSA Broadcast Key Features
- 4K sensor, extended video dynamic range, traditional external controls and buttons, built in optical ND filters, dual CFast and dual SD card recorders.

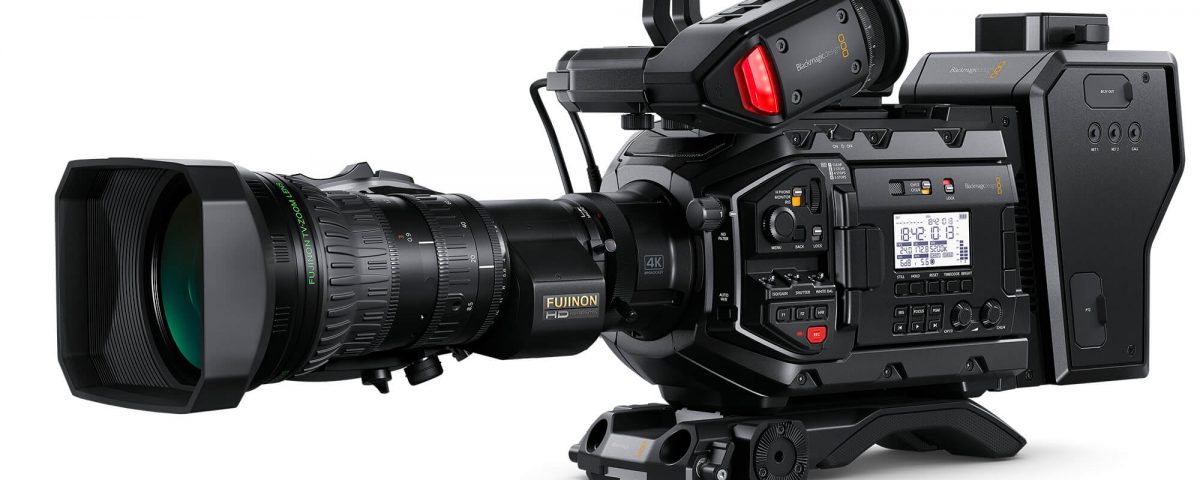

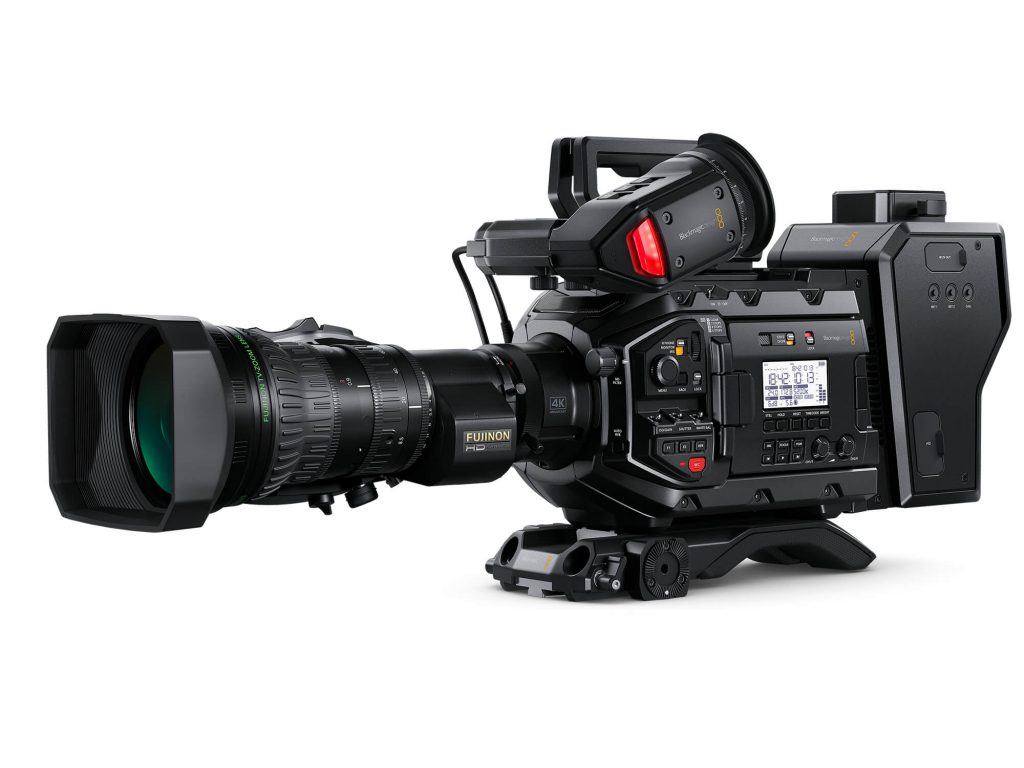

- Advanced HD and Ultra HD broadcast camera with 2/3” B4 mount.
- New extended video mode with better dynamic range and color fidelity producing images with amazing texture and detail, accurate skin tones, vibrant color and high dynamic range.
- Full electronic B4 lens control support for adjusting focus, iris and zoom using the camera’s controls, or remotely from an ATEM switcher or ATEM Camera Control Panel.
- Built in dual SD/UHS-II and C-Fast card recorders allow unlimited duration recording in high quality.
- Records 1080i or 2160p video into standard .mov files using DNx145, DNx220X or ProRes for compatibility with existing broadcast systems and workflows. Standard .mxf will be added in future updates.
- Support for DNxHD 220X, DNxHD 145, Apple ProRes 4444 XQ QuickTime, ProRes 4444 QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime and ProRes 422 Proxy QuickTime, CinemaDNG RAW, CinemaDNG RAW 3:1, CinemaDNG RAW 4:1.
- High quality clear, 1/4, 1/16th and 1/64th stop neutral density (ND) filters with IR compensation designed to specifically match the colorimetry and color science of URSA Broadcast.

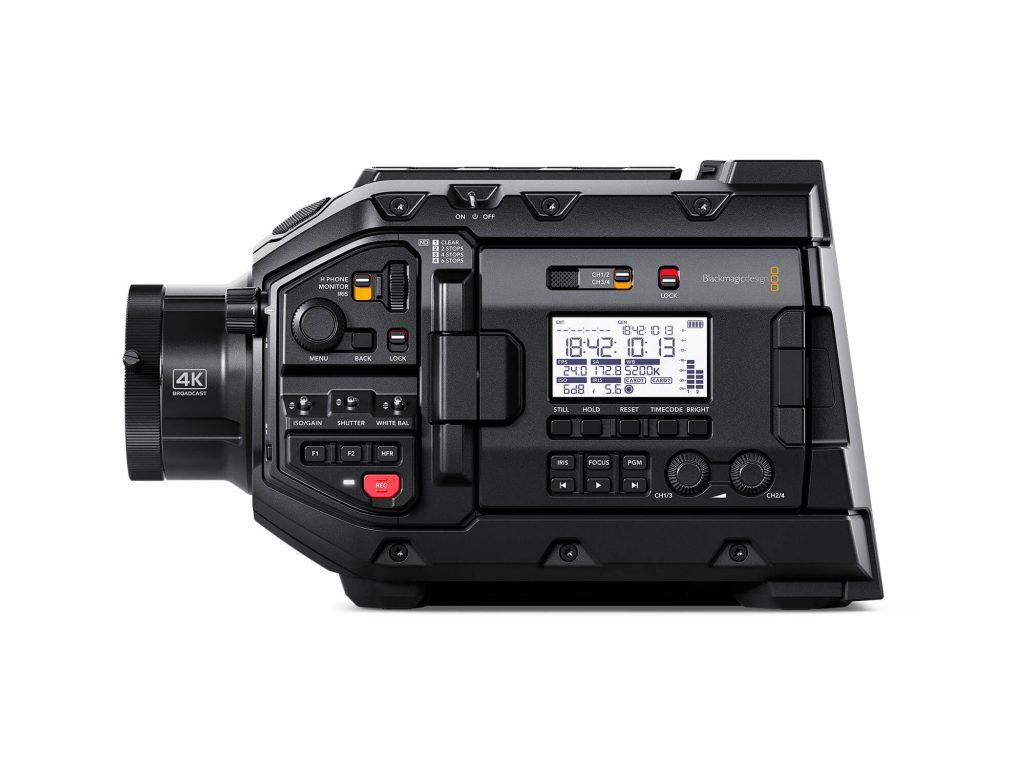

- Fully redundant controls including external broadcast controls which allow direct access to the most important camera settings such as external power switch, ND filter wheel, ISO, shutter, white balance, record button, audio gain controls, lens and transport control, high frame rate button and more.

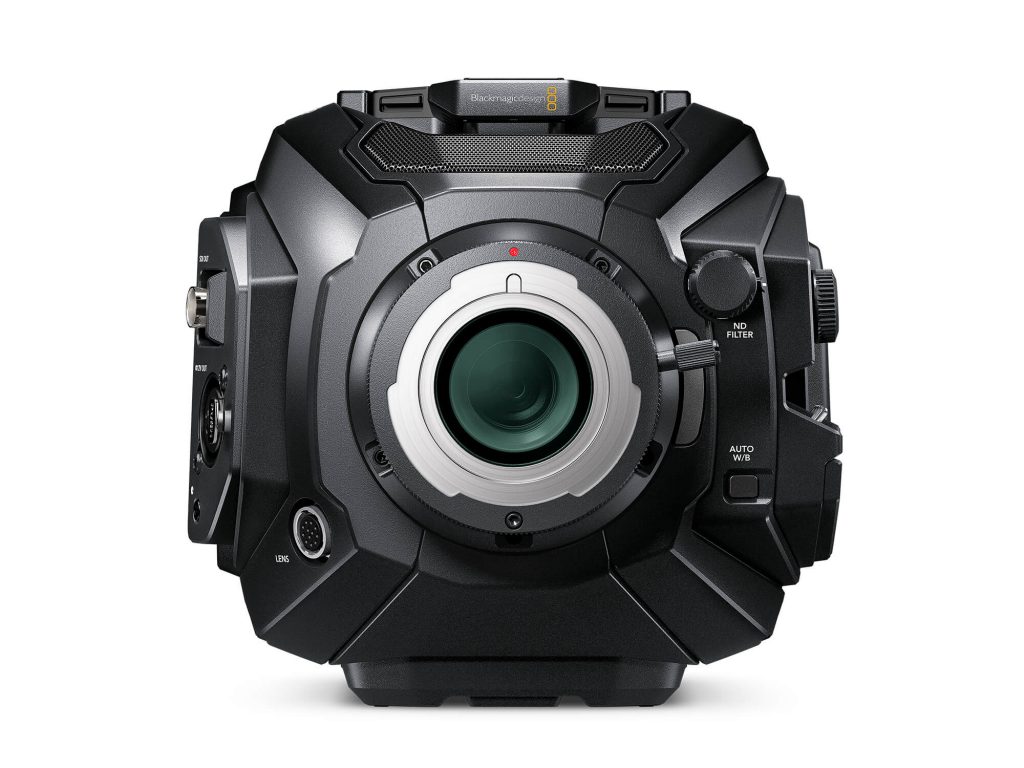

- Interchangeable lens mount with B4 mount included as standard. Optional EF, PL and F mount available separately.
- Status display for quickly checking timecode, shutter and lens settings, battery, recording status, and audio levels.

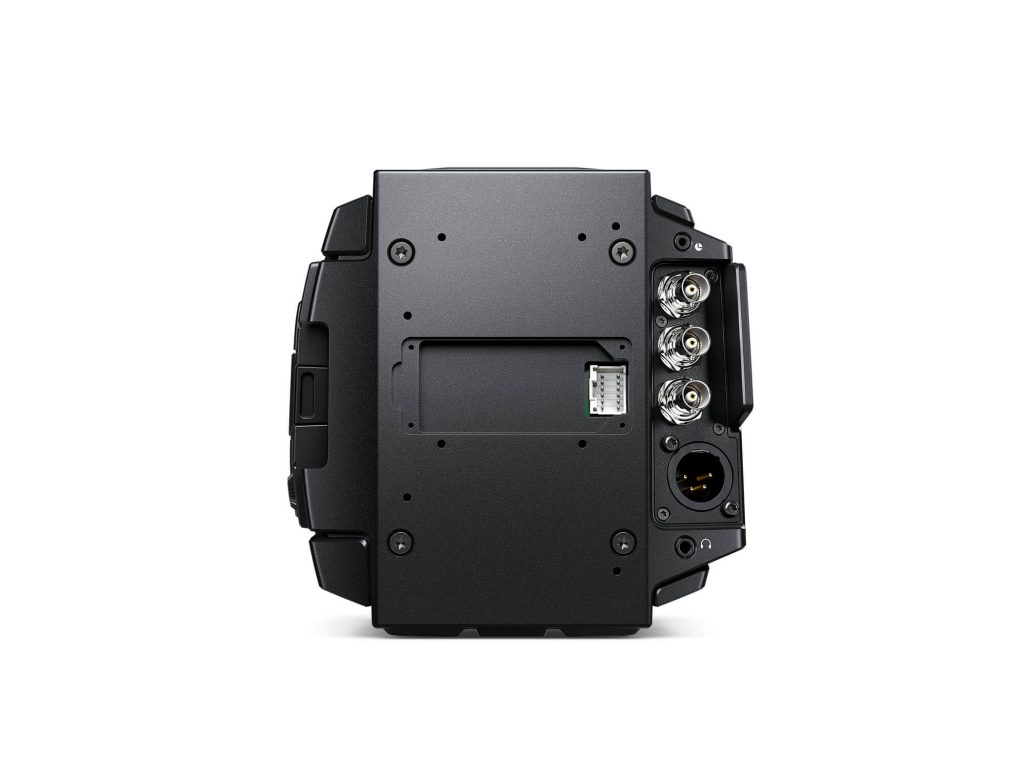

- Features all standard connections, including dual XLR mic/line audio inputs with phantom power, 12GSDI output for monitoring with camera status graphic overlay and separate XLR 4 pin power output for viewfinder power, headphone jack, LANC remote control and standard 4 pin 12V DC power connection.
- Built in high quality stereo microphones for recording sound.
- 4 inch foldout touchscreen for on-set monitoring and menu settings.
- Blackmagic SDI Control Protocol for external control or iPad control via Bluetooth®, 2 x 2.5mm LANC for lens and record control.
